Bosch Security | NDP-4502-Z12

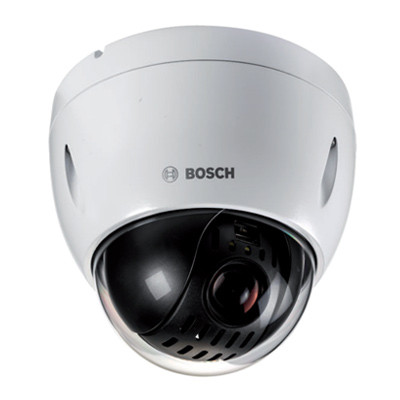

Bosch AUTODOME IP 4000i indoor PTZ with HD 1080p resolution, 12x optical zoom, Essential Video Analytics, H.265 and PoE+
Ideal for monitoring busy locations, this Bosch PTZ dome includes continuous 360° pan and variable pan/tilt movements for responsive navigation throughout a wide area. It also supports Bosch's Essential Video Analytics.
- 360° pan & 12x optical zoom
- HD 1080p resolution
- Connect further alarm devices to I/O ports
This product is discontinued, an alternative model is the Bosch AUTODOME IP Starlight 5000i
Overview of the Bosch AUTODOME IP 4000i
This Bosch PTZ dome captures HD 1080p video round-the-clock, at up to 60 frames per second (fps) - making it ideal for monitoring busy locations. Wide indoor areas and regions of interest can be examined in detail using the camera’s full pan/tilt functionality and 12x optical zoom. Part of the AUTODOME 4000i range that includes a specially designed unit for in-ceiling mounting, both models feature Bosch’s Essential Video Analytics and can be installed using Power-over-Ethernet Plus (PoE+).
Models available (please select from the dropdown menu above):
- HD 1080p resolution for surface mounting (NDP-4502-Z12)
- HD 1080p resolution for in-ceiling mounting (NDP-4502-Z12C)
Continuous 360° pan and variable speed pan/tilt movements enable efficient navigation throughout a wide area – ideal for closely monitoring a person or incident. In addition, powerful 12x optical zooming allows areas of interest to be investigated in real-time and with support for up to 256 preset positions, users can configure guard tours to monitor multiple regions in a sequence.
Clearer, low-light images are produced with the help of Bosch’s Intelligent Dynamic Noise Reduction (IDNR) technology which analyses the scene and reduces noise levels. These low-noise images, combined with the unit’s efficient H.265 compression technology, results in reduced bandwidth streams that still retain a high image quality.
Bosch’s edge-based Essential Video Analytics helps to provide reliable and accurate security surveillance by using a comprehensive range of configurable alarms. The i-LIDs approved technology offers a total of 14 rules and users can set a maximum of 8 rules to run simultaneously. During image capture, detailed metadata is also recorded – enabling the quick retrieval of specific footage from hours of stored video. By running this advanced technology at the edge, all processing can be done without putting any load on the network or central resources.
The camera’s integrated alarm and audio I/O ports allow the connection of external devices which can help to enhance alarm signalling or enable features such as two-way audio. PoE+ support delivers power and network connectivity over a single cable, and the built-in MicroSD card slot provides edge storage - allowing the camera to be used as a standalone unit. Remote monitoring is supported through the use of Bosch’s free Video Security mobile app, which provides users with remote access to live images, camera control and also playback of recordings.
Please note: this camera does not come with a power supply, please select from the accessories tab if required.
Key features & benefits
- Delivers HD 1080p resolution at up to 60 fps for smooth live views and playback
- Responsive scene navigation using variable pan/tilt movements (including 360° endless pan)
- True day/night functionality with IR-cut filter provides 24-hour monitoring of indoor areas
- 12x optical zoom allows areas of interest to be investigated in real-time
- Total of 256 preset positions and two types of guard tours (preset and recorded) are supported
- Low-light video is improved and bandwidth is reduced with the use of intelligent dynamic noise reduction
- Bosch’s Essential Video Analytics helps increase scene awareness for reliable security monitoring
- Audio I/O ports support two-way communication and allow sound to be recorded
- External devices can be connected via integrated alarm I/O ports for enhanced alarm signalling
- Three pre-programmed user modes are available for automatic optimisation and simplified setup
- H.265 compression format offers further reductions on bandwidth and storage over H.264
- Support for PoE+ reduces cabling by delivering both power and network connectivity via a single cable
- On-board storage provides a backup if the network fails, recording files onto the MicroSD card (not included)
- Straightforward access to the camera via the Bosch Video PC Client, web browser or free Bosch Video Security mobile app
Compatible recording platforms
- Milestone XProtect
- Bosch Video Management System
- Bosch Video Security mobile app
Typical applications
The Bosch AUTODOME IP 4000i PTZ network camera delivers smooth, 24-hour CCTV surveillance of wide indoor areas that feature high levels of activity – in HD 1080p resolution. Typical applications include train stations, production lines and logistic centres.
Accessories
Included:
- Camera mounting plate or mounting template (model dependent)
- T10 Torx screwdriver
- T15 Torx screwdriver
- 4 x MAC address labels
- Quick installation guide
Optional (please select from the accessories tab if required):
- Midspan
- MicroSD card
- Accessories
Back To Top
Key technical features of the Bosch AUTODOME IP 4000i
Camera |
|
Environment: | indoor |
Type: | PTZ |
Sensor: | 1/2.8" progressive scan CMOS |
Lens: | 5.3 mm - 64 mm (F 1.6 - F 2.8), field of view: 4.9° - 58.5° |
PTZ: | 256 preset positions, pan: 360°, tilt: 0° ~ 90° speed: 0.1°/s - 120°/s (normal), 0.1°/s - 160°/s (turbo pan), 0.1°/s - 120°/s (turbo tilt), 160°/s (preset pan), 120°/s (preset tilt), 12x optical zoom and 16x digital zoom, 2 guard tours |
Memory: | micro SD memory card (a maximum of 32 GB microSDHC / 2 TB microSDXC) (SD card of Class 6 or higher is recommended for HD recording) |
Power: | 24 VAT or PoE+ (IEEE 802.3at class 4), 12W |
Audio: | supports two-way audio |
Video |
|
Resolution: | 1920 x 1080 max. |
Compression: | H.264, H.265, M-JPEG |
Frame-rate: | up to 60 fps in all resolutions |
Bandwidth control: | multiple configurable streams in H.265, H. 264, and M-JPEG, configurable frame rate and bandwidth, quad streaming |
Video overlay: | not given |
Day/night: | mechanical switchable IR filter |
Minimum illumination: | colour: 0.05 lux, mono: 0.01 lux |
Imaging: | electronic shutter speed, Wide Dynamic Range, backlight compensation, white balance, defog, intelligent dynamic noise reduction |
Viewing, detection & recording |
|
Privacy masking: | yes, 24 individually configurable masks |
Number of users: | not given |
Alarm detection: | video motion detection, Bosch's Essential Video Analytics |
Pre-/post-alarm buffer: | not given |
On-camera recording: | micro SD card (32GB microSDHC / 2TB microSDXC) |
Recording software supported: | access via web browser (such as Internet Explorer version 11.0 or later), Configuration Manager, Bosch VMS or Video Client |
Connections |
|
Network: | RJ45 10/100 Base-T PoE+ (IEEE 802.3at, class 4 standard) |
Audio: | 1 x mono line in, 1 x mono line out |
Alarm: | 2 x input, 1 x output |
Other |
|
Dimensions: | surface model: Ø170.2mm x 162.4mm, in-ceiling model: Ø198mm x 159.3mm |
Weight: | surface model: 1.88kg, in-ceiling model: 1.81kg |
Mounting methods: | additional mounting methods sold separately |
Operating temperatures: | –10°C to 55°C |
Power consumption: | max. 12 W |
Protocols supported: | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
QoS: | yes |
Security: | user authentication, watermark, IP address filtering, anonymous access, reset |
ONVIF compliant: | yes |
Warranty: | 3-years |
